VDA040P

$776.00

0 – 40kV analog voltage detector with proximity test, hook probe, straight probe, universal/grip-all adapter, manual, case
Manual

The VDAO40P is a Dual Application Analog Voltage Detector.

The VDAO40P Features:

  • Detects 0-40kV Line to Ground (0-69kV Phase to Phase)
  • A Proximity or Direct Contact on Overhead and Underground Systems
  • Easy to Read Analog Scales

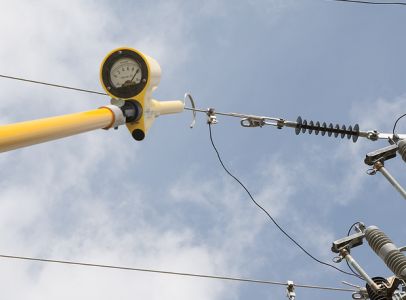

  • Detect Voltage from the Ground on Bare Overhead Lines when Hand Held
  • Test Secondary Voltage on Bare or Insulated Cables
  • The Detector Indicates Line to Ground Values for Nominal or Induced Voltages
  • The 5 - Position Selector Switch is Calibrated for Height above Ground to Compensate for a Capacitive Coupling Effect
  • Shielded to Minimize Stray Field Interference
  • For Your Safety, the Detector Includes Overload Protection up to 500kV
  • Water Resistant, and a Strong Construction Designed to Withstand Wear
  • Contained in a Highly Durable Padded Carrying Case



One year warranty on parts and labor.

E (AES) (8128EALB) One 15 – 35kV elbow adapter
$46.00
L (ABL) (8128TBALB75) One 35kV load break bushing adapter, large interface
$61.00
S (ABS) (8128TBALB) One 15 – 35kV bushing adapter
$52.00
U (AUG) (PA165UGA) Universal/Grip-all adapter
$14.00
